Learn how to use Asset details to help you understand the risk(s) an asset poses
Table of content
- Learn the detailed information of your asset
- View the overview of your asset
- Update your asset criticality
- Update your asset assignees
- Update your asset tags
- View different statuses of your Port
- View list of ports under the asset
- View issue discovered in your asset
1. How to get detailed asset information
In Autobahn Fit, we share the details of each asset to help you understand the risk and how to mitigate it. All this information is shown on the Asset detail page.
To open the Asset detail page, you can click the IP address on the:
-
Asset overview page
-
Cyber Fitness Dashboard page
-
Scan detail page
-
Issue detail page

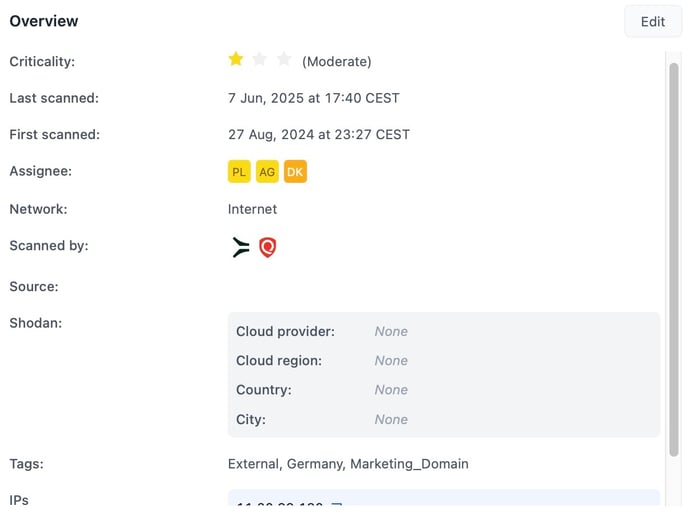

Upon arriving at the Asset detail page, the initial view presents the Asset Overview section. This section provides comprehensive information about your asset.
Below you an explanation of each of the data points you might encounter.
|
Overview |
Description |
|---|---|
|
Criticality |
This is the criticality that you have manually given this asset, either moderate, substantial or critical. |
|
Last scanned |
The date of the last scan of this asset. |
|
First scanned |
The date of the first scan targeting this asset. |
|
Assignee |
Responsible person for the selected asset. |
|
Network |
The network of the asset. It could be internet or internal. |
|
Scanned by |
The engine that scanned the asset, either the Autobahn Fit engine or another vulnerability data source. |
|
Source |
Source of the asset. Currently, the asset can be collected from the user's existing tool(s), Autobahn Fit discovery engine, and manual upload. |
|
Shodan |
This information is provided by Shodan and cannot be altered. |
|
Tags |
Tags added to the asset. |
|
IPs |
IP of the selected asset. |
3. Update asset criticality
Different assets may have different levels of importance. To help you focus on remediating the important assets, you can set the criticality level of your assets.
1 - On the Overview section, section click the Edit button in the top right.
2 - Click the Asset Criticality dropdown.
3 - Select the criticality level from the dropdown. There are three available criticality levels:
-
Moderate
-
Substantial
-
Critical
5 - Click the Save button to save the changes, or the Cancel button to cancel the changes.
4. Update asset assignees
To help you manage your assets, you can add assignee(s) to your assets.
1 - On the Overview section, click the Edit button in the top right.
2 - Click the Assignee field. A list of members within the organization will appear.
3 - Select the Assignees from the list. Selected assignees will appear on the field.
4 - Click the “x” button next to the assignee to remove them from the asset.
5 - Click the Save button to save the changes, or the Cancel button to cancel the changes.
5. Update your asset tags
Autobahn Fit allows you to add tags to your asset to help identify the assets and get information about the asset.
1 - On the Overview section, click the Edit button in the top right.
3 - Click enter to save the Tag.
4 - Click the “x” button next to the tag to remove it from the asset.
5 - Click the Save button to save the changes, or the Cancel button to cancel the changes.
6. View different port statuses
Next to the Overview section, you can see the Port Overview section. This section displays IP addresses or domains that are new, open, and closed.
New: ports discovered for the first time in the latest scan.
Open: ports discovered before in a previous scan, and during the latest scan of the asset remain available.
Closed: ports that were previously open, but could not be reached in the latest scan.
7. View ports associated to the asset
Attackers can easily exploit weaknesses in the applications listening on a port and take advantage of security vulnerabilities in older, unpatched software, weak credentials, and misconfigured services to compromise a network.
By deactivating unused ports, you can lower your security vulnerability and minimize the potential entry points for attacks on your organization. For this reason, we provide a detailed list of both your active and inactive ports in this section to help you stay informed about your assets' security status.
Determine which information to be displayed on the table by:
1 - Click the Column View button.
2 - Select/deselect the column title.
3 - Click the OK button to save the changes.
IPs or Forward/Reverse DNS, Service, and Banner columns can not be hidden from the table.
Several actions can be done in the Port details table:
1 - Filter the data displayed in each column by clicking the Filter button.
Port status and Max severity columns allow filtering based on categories shown in the checkboxes.
While the other columns allow filtering the data by inserting keywords into the Search field.
2 - To reset the filter, click the Filter and click the Reset button in the filter dropdown.
3 - You can sort all columns except the IPs or Forward/Reverse DNS by clicking the Sort button next to the column name.
8. Issue details related to the asset
To keep you informed about any issues affecting your asset, we provide a count of newly detected issues and the total number of issues found. As you address and resolve these issues, the displayed count will decrease accordingly. Newly detected issues are important to check, but issues that have been open for longer time (mentioned in Detected) also need attention.
Below the overview section, there is a table consisting of a list of issues affecting the selected asset. Determine which information to be displayed on the table by:
1 - Click the Column View button.
2 - Select/Deselect the column title from.
3 - Click the OK button to save the changes.
Please note that the Status, Issue, and Family columns can not be hidden from the table.
Several actions can be done in the table:
1 - Click on the issue name to view the selected issue’s detail page.
2 - Filter the data displayed in each column by clicking the Filter button.
The issue, Port, Protocol, and CVE columns allow filtering the data by inserting keywords into the Search field.
While the Family and Severity columns allow you to display information based on the categories shown in the checkboxes.
3 - To reset the filter, click the Filter and click the Reset button in the filter dropdown.
4 - Sort the columns by clicking the Sort button next to the column name.
